Description
| Specifications | |
|---|---|
| Model | TM-AI06F |
| Hardware | |
| CPU | 1.2G Dual-Core ARM Cortex-A7 |
| NPU | 600G (0.6T) |
| RAM | 256M DDR3L |
| ROM | 4G EMMC |
| Camera |
Real Sensor 1/2.9 inch FOV 75° 2MP pixel high-definition color camera WDR wide dynamic Sensor 1/5 inch FOV 75° 2MP pixel infrared live camera |
| Fill Light |
LED Fill Light and Dual Infrared Fill Light (Automatic control according to ambient light) |
| Display | 4.3 Inch Touch Screen, 272*480 |
| Communication port | TCP/IP, USB-Type A (Support U disk), Wifi |
| Product Size | 187.5mm*87.5mm*26mm |
| Power | DC 12V, 1A/2A |
| Working Temperature | 0~45 °C |
| Working Environment | Under normal light, strong light, dark environment, backlight |
| Firmware Specs | |
| OS | Linux 3.0 |
| Language |
English, Spanish, Arabic, Thai, Russian, Portuguese, French, Farsi, Vietnamese, Japanese, Turkish, and customizable |
| Verify Method |
Face Recognition, Fingerprint, ID Card (IC optional), Password or combination |

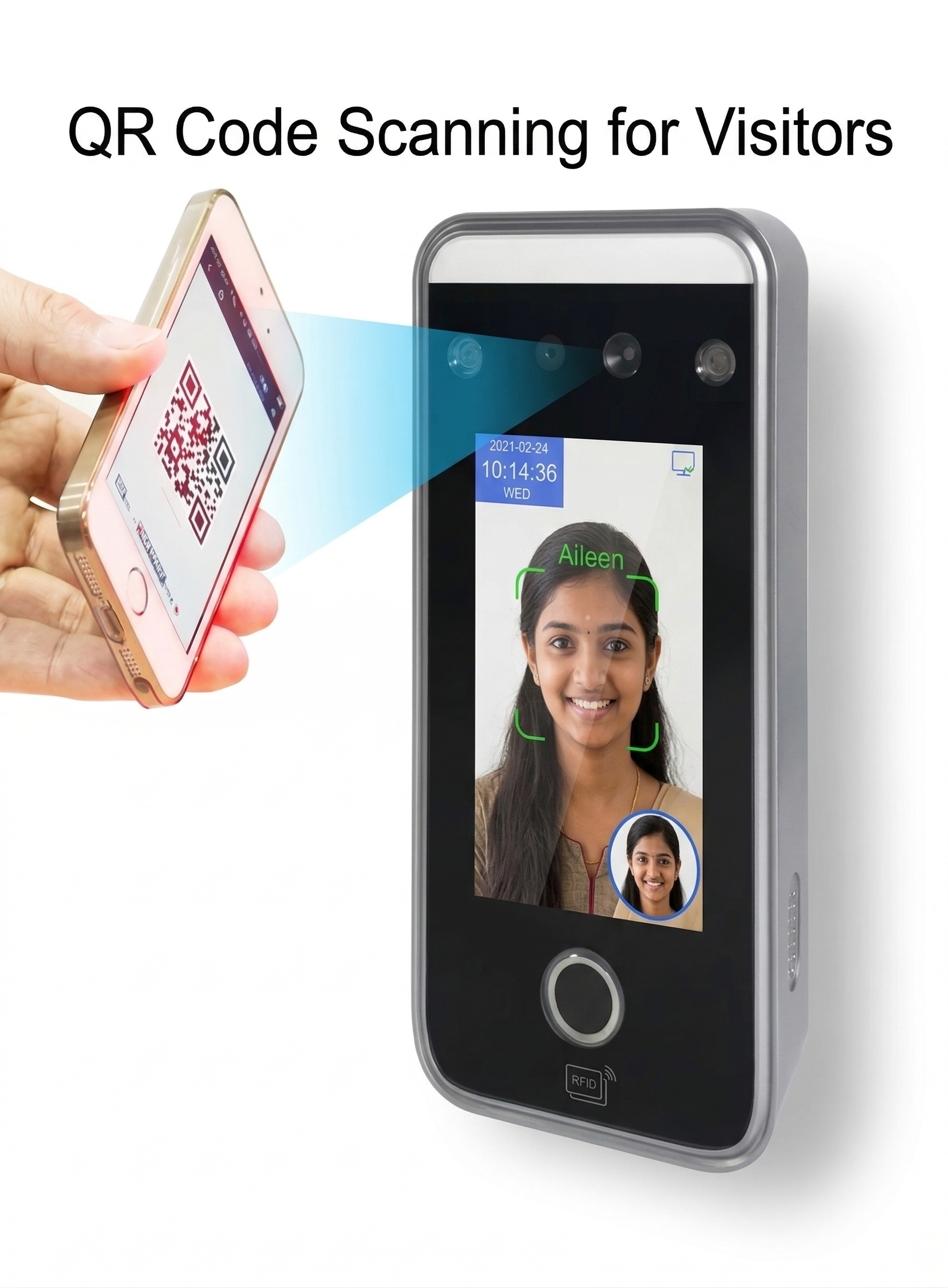

| QR Code Scanner | Support (Scan by camera) |
| Face/Card/Password Capacity | 5,000 (50,000 optional) |
| Fingerprint Capacity | 10,000 (100,000 optional) |
| Logs Capacity | 500,000 |
| Face Recognition Speed | <0.2S |
| Face Recognition Distance | 0.5~2.5 meters (adjustable) |
| Live Face Detection | Reject Photo and Video |
| Mask Detection | Support mask detection and face recognition with wearing mask |
| Access Control Interface | |
| Relay output | One set |
| Alarm output | One set |
| Fire Input | One set |
| Door sensor | Support |
| Wiegand | One set WG 26/34 Input/Output |
| Exit button | Support |
| Door Bell | Support |
