Description
SPECIFICATIONS
| Category | Specification |
|---|---|
| Model | TM-AI07F |
| Hardware | |
| CPU | 1.2G Dual-Core ARM Cortex-A7 |
| NPU | 600G (0.6T) |
| RAM | 256M DDR3L |
| ROM | 4G EMMC |
| Camera |
Real Sensor 1/2.9 inch FOV 75° 2MP pixel high-definition color camera WDR wide dynamic
Sensor 1/5 inch FOV 75° 2MP pixel infrared live camera |
| Fill Light | LED Fill Light and Dual Infrared Fill Light (Automatic control according to ambient light) |
| Display | 5.0 Inch IPS Touch Screen, HD 720×1280 |
| Communication Port | TCP/IP, USB Type-A (Support U disk), WiFi, RS485 |
| Product Size | 188mm × 80mm × 20mm |
| Power | DC 12V, 2A |
| Working Temperature | 0~45 °C |
| Working Environment | Under normal light, strong light, dark environment, backlight |
| Material | Aluminum alloy case |
| Firmware Specs | |
| OS | Linux 3.0 |
| Language | English, Spanish, Arabic, Thai, Russian, Portuguese, French, Farsi, Vietnamese, Japanese, Turkish, and customizable |

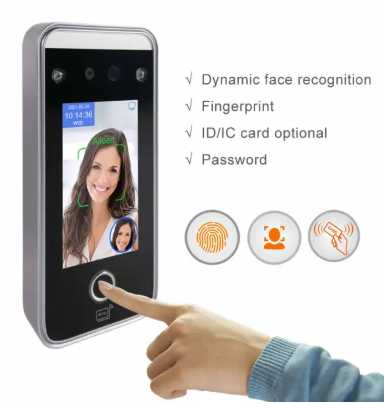

| Verify Method | Face Recognition, Fingerprint, ID Card (IC optional), Password or combination |
| QR Code Scanner | Support (Scan by camera) |
| Face/Card/Password Capacity | 5,000 (50,000 optional) |
| Fingerprint Capacity | 10,000 (100,000 optional) |
| Logs Capacity | 500,000 |
| Face Recognition Speed | <0.2S |
| Face Recognition Distance | 0.5~2.5 meters (adjustable) |
| Live Face Detection | Reject Photo and Video |
| Mask Detection | Support mask detection and face recognition with wearing mask |
| Access Control Interface | |
| Relay Output | One set |
| Alarm Output | One set |
| Fire Input | One set |
| Door Sensor | Support |
| Wiegand | One set WG 26/34 Input/Output |
| Exit Button | Support |
| Door Bell | Support |
| Tamper Alarm | Support |
| Anti-pass back | Support |
| Interlock | Support |
